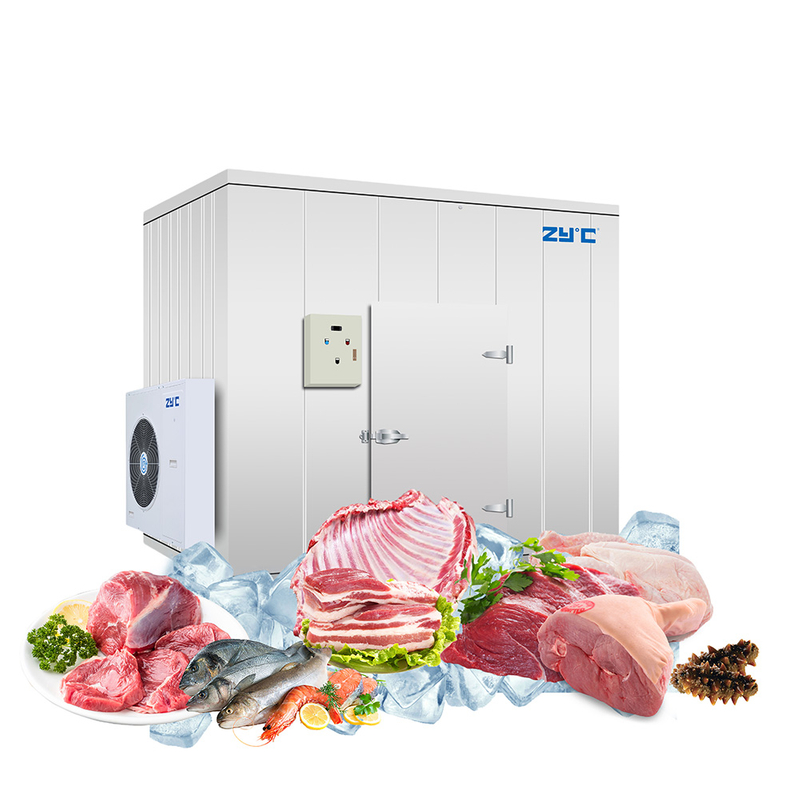

Cold Storage Room / Walk-in Freezer / Low Temperature / Custom Design

PRODUCT ADVANTAGE

Low-Temperature Cold Storages, Freezer Room, are mainly used for the long-term low-temperature storage of food, pharmaceuticals and other items requiring cryogenic preservation.

• The main body is constructed with polyurethane insulation panels. The cabinet adopts double-sided plastic-coated color steel plates or stainless steel plates as the outer protective layer, with high-density polyurethane foam meticulously filled in between to create an effective thermal insulation barrier. The standard panel thickness is 150mm or 200mm.

• The core refrigeration equipment comprises compressor condensing units and evaporators. Compressors can be chosen from scroll, semi-hermetic reciprocating, or screw types, depending on the system's cooling capacity requirements. They can be applied in either single or parallel configurations to suit specific operational needs. Evaporators, on the other hand, come in air-cooled fan type and aluminum tube type, catering to diverse stored goods and cold room structural designs.

• The refrigeration system is equipped with a microcomputer control system, enabling precise temperature regulation and real-time monitoring of operational parameters. It boasts comprehensive protection and alarm functions to ensure safe and reliable operation. Additionally, remote monitoring and control capabilities are integrated, allowing for convenient management from a distance. For centralized control, a system integrating PLC and human-machine interface (HMI) can be adopted for unified display and operation management.

Please refer to our previous projects on the CASE page.

FREE ON

• Size and Volume, could be designed with your needs

• Design and Quotation, contact us anytime

1.POLYURETHANE PANEL AND DOOR

- Polyurethane PANEL: PUR Panel with Cam-Lock / PUR Panel / PIR Panel (Density: 42kg/m³)

- Thickness: 75mm/100mm/120mm/150mm/200mm

- Wall/Roof Panel Surface Plate: Color Steel / Stainless Steel

- Floor Panel Surface Plate: Galvanized Steel / Anti-slip Aluminum / Anti-slip Stainless Steel

- Polyurethane DOOR: Hinged Door, Sliding Door, Sectional Door, Fast Door

2. CONDENSING UNIT

Air Cooled Condensing Unit

Water Cooled Condensing Unit

Evaporative Cooled Condensing Unit

• Equipped with high-quality refrigeration compressors, featuring fast cooling, large cooling capacity and adaptability to various working conditions

• Multiple condensing modes available: air-cooled, water-cooled and evaporative cooling, enlarged exchange capacity for tropical ambiant

• Exquisite assembly with premium selected refrigeration components to optimize system performance. Prior to delivery, rigorous pressure testing and leak detection procedures are conducted to ensure reliability.

• Feature a robust and stable structure to guarantee a prolonged service life

• Incorporate comprehensive protection functions: high/low pressure protection, compressor overload protection and more

3. EVAPORATOR

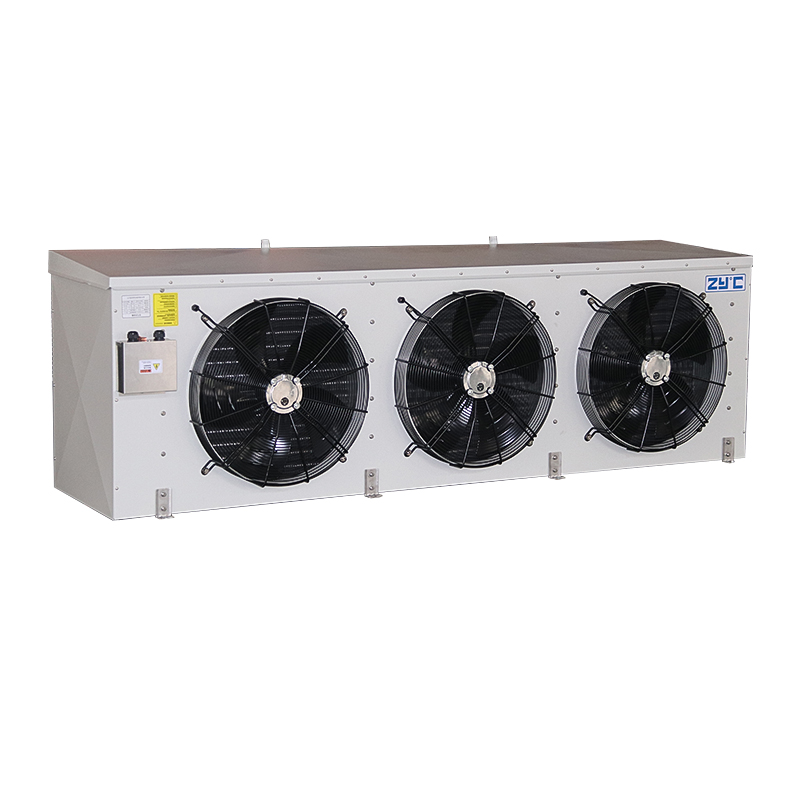

Air Cooler

Aluminum Tube

• Broad temperature application spectrum

• High efficiency coupled with low energy consumption

• Optimal utilization of cold storage space

• Minimized product dry consumption to enhance food quality

• Diverse structural options: Ceiling-Mounted, Floor-Standing, Bilateral Blowing, Ceiling-mounted Aluminum Tube, Aluminum Tube Shelf

4. REFRIGERATION CONTROL PANEL

- Standard Function: Refrigeration control, Defrost control, Compressor overload and phase loss protection, Temperature display, Current display, Fault alarm

- Monitoring and Remoting if accessing WiFi

- Siemens PLC for complex control requirements

- Including the control of compressor, air cooler and auxiliary equipment

- High Quality Electronic Accessories: CHNT, Schneider, Siemens
