High-Efficiency Scroll Compressor Air-Cooled Condensing Unit for Industrial & Commercial Refrigeration
This advanced condensing unit features a high-efficiency scroll compressor with axial/radial compliance technology, delivering rapid refrigeration and 15-20% energy savings compared to reciprocating systems. Its robust design ensures low noise, minimal vibration, and reliable performance across a wide temperature range (-40°C to +12°C).
| Quantity: | |
|---|---|
Scroll Air Cooled
ZYC
- Advanced Scroll Technology: Equipped with an efficient scroll refrigeration compressor, this unit utilizes axial and radial compliance technology. This specific design provides superior liquid handling capability, ensuring stable and continuous operation even under demanding cooling conditions.
- Enhanced Mechanical Reliability: The scroll compressor features up to 70% fewer moving parts compared to traditional reciprocating compressors. This simplified internal mechanism significantly reduces mechanical wear, resulting in lower sound levels, minimal vibration, and an extended operational lifespan with reduced maintenance frequency.
- Cost-Effective Operation: Through continuous COP (Coefficient of Performance) improvements, the system delivers substantial energy efficiency. Facility operators can expect annual electrical savings of 15% to 20% when compared with standard reciprocating systems, effectively lowering the total cost of ownership over the equipment's life cycle.
Medium to High Temperature Operations - Specifically engineered for medium-high temperature cold storage and commercial process cooling applications. - Provides a comprehensive capacity range from 1HP to 30HP, covering diverse segments such as standard cold rooms, fruit and vegetable preservation, banana ripening facilities, and industrial chillers within the plastic or rubber industries. | |
Medium to Low Temperature Operations - Ranging from 2HP to 7.5HP, making it highly suitable for -18℃ walk-in freezers and frozen storage rooms. - Liquid Injection Technology: Equipped with a liquid injection control module to maintain optimal operating conditions. - CoreSense Protection: The liquid injection process is precisely controlled by the CoreSense module, which protects the compressor against high discharge temperature failures. An integrated LED display on the module panel alerts operators to the DLT sensor status and EXV operation, enabling rapid troubleshooting and minimizing system downtime. | |
Low Temperature Operations - Supports evaporation temperatures down to -40℃, widely applied in deep freezing, seafood processing, ice cream storage, and industrial ice making. - Vapor Injection Technology: This advanced feature allows the compressor to deliver 20% higher efficiency and 40% greater cooling capacity on average compared to standard single-stage compressors during low-temperature operation. - Intelligent Diagnosis: The onboard CoreSense module manages the vapor injection kit to maintain safe discharge temperatures. It provides direct communication and intelligent diagnosis through internal LED indicators, ensuring maximum equipment protection and operational safety in extreme conditions. |
- Comprehensive Scope of Supply: The condensing unit is delivered with essential components pre-selected and integrated, including solenoid valves, filter driers, and sight glasses. This ready-to-install approach simplifies component sourcing for contractors and ensures that all parts are accurately matched to guarantee optimal refrigeration performance.
- Compact Footprint: The inherent design of scroll compressors allows for highly compact system configurations, saving valuable installation space for end-users and facility managers while lowering overall installation costs.
- Optimized Air-Cooled Condenser: Designed with a large condensing area to maximize heat exchange efficiency. To accommodate different site constraints and ventilation requirements, the units are available in three specific structural designs:

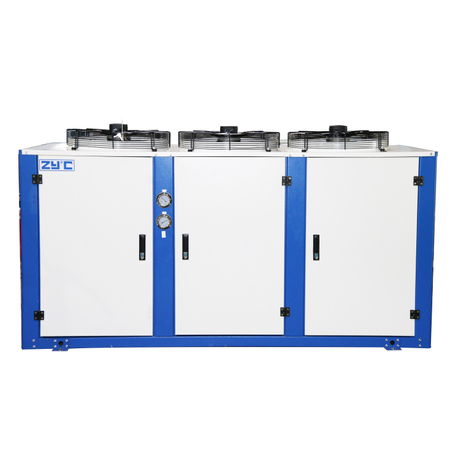

U Box Design
Upward Blowing Airflow
V/W Box Design
Upward Blowing Airflow
Open Type Design
Sideward Blowing Airflow
- System Protection: Built-in high and low-pressure protection, along with compressor overload protection, safeguards the equipment against abnormal operating conditions, reducing the risk of sudden breakdowns.
- Quality Assurance: Every unit undergoes rigorous pressure testing and leak detection procedures before leaving the factory to ensure out-of-the-box reliability and safe operation.
- High Seasonal Efficiency: The motor, scroll elements, and bearings are meticulously optimized to deliver high seasonal efficiency. This focus on energy conservation helps end-users significantly reduce their year-round power consumption and operating expenses.
- Targeted Customization: Recognizing that standard configurations may not fit every commercial or industrial scenario, we offer non-standard customization services. The condensing units can be adapted for targeted cooling applications depending on specific project requirements.
- Project-Specific Adaptations: Customization options include special voltage configurations to match local power grids, as well as factory-installed control panels. These pre-wired panels streamline on-site electrical work, reduce installation errors, and ensure seamless integration into existing facility management systems.
