The critical window between physical installation and system startup represents the highest-risk phase for commercial refrigeration. Moving too fast here exposes your facility to severe operational hazards. Skipping proper commissioning often leads to premature compressor failure. It also immediately voids manufacturer warranties. Furthermore, it compromises your valuable stored inventory right from day one. You must ensure every component functions perfectly before flipping the power switch. This guide serves as an objective, industry-standard framework. It helps you evaluate the true operational readiness of your refrigeration equipment. You will learn how to inspect structural seals and validate electrical connections thoroughly. We will also show you how to verify mechanical baselines accurately. Finally, you will discover the criteria for selecting a competent commissioning partner. By following these exact steps, you protect your initial investment entirely.

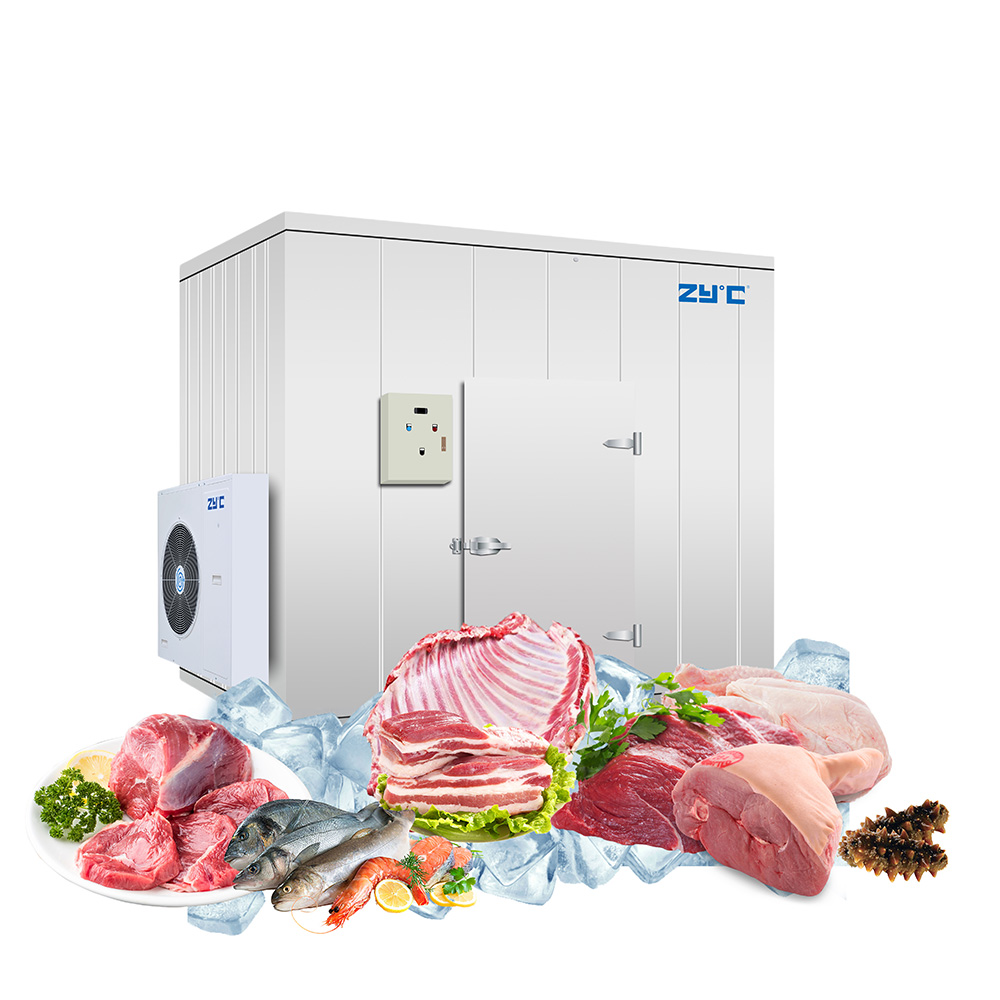

Evaluating a newly built Cold Room / Walk-in Freezer goes far beyond turning the unit on and waiting for the temperature to drop. Commissioning serves as the primary defense against catastrophic equipment failures. We frequently see business owners rush the startup phase to begin storing product. This haste often results in massive financial losses within the first month of operation.
Immediate failures often stem from unverified startup procedures. For example, liquid slugging can destroy a brand-new compressor on day one. This occurs when liquid refrigerant returns directly to the compressor because the expansion valve remains incorrectly adjusted. The cost of replacing a destroyed compressor dwarfs the nominal time investment required for rigorous pre-flight checks. Taking a few extra hours to verify system pressures saves you thousands of dollars in emergency repair bills.
Major equipment manufacturers enforce strict warranty guidelines. They require a signed, detailed startup checklist before they will honor any coverage claims. If your compressor fails six months down the line, the manufacturer will ask for your initial startup report. Failure to provide recorded baseline metrics typically voids the warranty instantly. Technicians must document precise measurements, including:
A successful startup means more than just making the room cold. It requires achieving efficient temperature pull-down while maintaining system stability. You want to see steady temperature drops without structural sweating. Condensation on the exterior panels indicates poor sealing or insufficient insulation. Furthermore, you must avoid icing on the evaporator coils and short-cycling of the compressor. Short-cycling happens when the system turns on and off rapidly. This behavior burns out electrical contactors and degrades motor windings prematurely.
The physical structure of your room carries the entire thermal load. Even minor gaps in the envelope force the refrigeration system to work continuously. This constant strain leads to premature mechanical wear. Therefore, you must rigorously inspect the panels, doors, and floors before applying any power to the cooling equipment.
Contractors assemble cold rooms using insulated panels secured by cam-locks. You must inspect every single joint. Verify the proper engagement of all cam-locks to ensure tight seams. Next, check the application of silicone seals along the wall corners and ceiling joints. A continuous vapor barrier prevents moisture-laden air from entering the space. When warm air breaches the envelope, it creates massive latent heat loads. The refrigeration system then wastes energy removing this moisture rather than dropping the room temperature.
The main access door represents the primary failure point in any insulated structure. It endures constant mechanical stress and thermal variance. First, require a strict verification of the door sweep alignment. It must create a frictionless but tight seal against the floor. Next, test the heated frame functionality. Freezers utilize anti-sweat door heaters to prevent the gaskets from freezing shut. If these heaters fail, ice builds up, tearing the gaskets upon opening. Finally, test the pressure relief port operation. Cooling air contracts rapidly, creating a vacuum inside the room. Without a functioning relief port, you will find it nearly impossible to open the door.
Insulation gaps create thermal bridges, allowing heat to bypass the protective envelope. You must carefully evaluate these risks when designing a low temperature cold storage room specifically. Look closely at the floor insulation transitions. Concrete floors without adequate underslab insulation will conduct heat directly into the freezer. Verify the installation of nylon thermal breaks between inner and outer metal surfaces. Missing thermal breaks lead to exterior condensation, which eventually causes structural rust and mold growth.
Table: Structural Envelope Inspection Checklist
| Component Area | Specific Element to Inspect | Acceptance Criteria |
|---|---|---|
| Wall & Ceiling Panels | Cam-locks and joints | All locks fully engaged; no visible light passing through seams. |
| Vapor Barrier | Silicone caulking | Continuous bead applied internally and externally; no gaps. |
| Access Doors | Gaskets and sweeps | Complete contact with frame; no tearing or stiffness. |
| Door Hardware | Anti-sweat heaters | Warm to the touch upon activation; no ice formation. |
| Safety Mechanisms | Pressure relief ports | Free movement of internal flaps; clear of debris. |
| Flooring | Thermal breaks | Proper transition strips installed; zero exterior condensation. |
Refrigeration equipment relies heavily on precise electrical power and sensitive electronic controls. Power anomalies destroy motors faster than any mechanical issue. You must validate the electrical infrastructure completely before engaging the main disconnect switch.
Never assume the building supplies clean, balanced power. You must mandate a thorough check for voltage imbalances. A minor voltage imbalance across a three-phase system causes extreme heat inside the compressor motor. In fact, a 5% phase imbalance increases motor temperatures by up to 50%. This heat degrades winding insulation rapidly. Additionally, technicians must verify proper system grounding. Faulty grounds cause erratic behavior in digital controllers and pose severe safety hazards to your staff.
Equipment travels hundreds of miles on trucks before arriving at your facility. Shipping vibrations routinely loosen factory electrical connections. We see this implementation reality constantly. You must require manual torque checks on all contactors, relays, and terminal blocks. Loose wires create high electrical resistance. This resistance generates intense localized heat, often melting the contactors or causing electrical fires. A simple five-minute torque check prevents these catastrophic failures.
Modern systems use advanced microprocessors to manage cooling cycles. Outline the necessity of verifying sensor placement before startup. Technicians often place temperature probes too close to the evaporator discharge, resulting in false readings. Calibrate all digital thermostats using an external reference thermometer. Finally, confirm the defrost termination parameters. The controller must know exactly when to end the defrost cycle to prevent overheating the frozen space. Incorrect parameters lead to melted inventory and excessive energy consumption.
Follow this numbered sequence for electrical validation:
The mechanical circuit handles the actual heat transfer process. Mistakes made during piping assembly will haunt the facility for years. You must ensure the contractor validates the physical integrity of the copper lines before introducing refrigerant into the circuit.
Refrigerant leaks cause performance degradation and environmental damage. Verify the contractor has completed a rigorous nitrogen pressure test. They should pressurize the system and let it stand for at least 24 hours to prove structural integrity. Afterward, they must pull a deep vacuum on the system. Industry standards dictate reaching 500 microns or lower. A deep vacuum proves the system remains entirely moisture-free. If moisture mixes with modern polyolester (POE) oils, it creates highly corrosive acids. These acids eat away at the compressor motor windings from the inside out.
Inspect the suction line insulation meticulously. Look for any gaps, tears, or unglued seams. Poorly insulated suction lines absorb ambient heat, decreasing overall system capacity and causing localized condensation dripping. Furthermore, examine the copper piping layout. Ensure oil traps and pipe sloping adhere precisely to engineering specifications. Proper pipe sloping guarantees the safe return of compressor oil. If the oil gets trapped in the evaporator coil, the compressor runs dry and seizes permanently.
Cooling systems require massive amounts of air to reject heat properly. Confirm adequate airflow clearances across both the outdoor condenser and the indoor evaporator coils. Blocked condensers cause high-pressure tripping and immediate system shutdowns. Note that specialized applications require unique configurations. For example, a blast freezer cold room requires distinct air-throw clearances to function correctly. Blast freezers move air at extremely high velocities to drop product temperatures rapidly. If you stack pallets too close to the fans, you disrupt the air-throw pattern, destroying the quick-freezing capability completely. Always ensure a standard walk-in freezer has at least two feet of clearance around the evaporator fans.
Not every refrigeration installer possesses the skills required for proper system commissioning. Installation involves heavy lifting and physical assembly. Commissioning requires diagnostic thinking and analytical testing. You must select a partner who understands the difference between simply turning a unit on and thoroughly proving its performance.
Advise your stakeholders to demand a formal, itemized startup report. Never accept a verbal confirmation that the system works. The contractor must provide a physical or digital document detailing every voltage reading, pressure metric, and temperature benchmark. This document becomes your baseline for all future maintenance. When performance drifts two years later, technicians will reference this initial report to diagnose the root cause quickly.
Evaluate the tools your contractor brings to the job site. We highly recommend shortlisting contractors who utilize digital manifolds and wireless data-logging tools. Legacy analog gauges lack the precision required for modern, high-efficiency refrigeration tuning. Digital tools calculate superheat and subcooling automatically, removing human math errors. They also provide objective baseline metrics you can trust.
Comparison Chart: Modern Diagnostic Methods vs. Legacy Approaches
| Evaluation Metric | Modern Digital Commissioning | Legacy Analog Approaches |
|---|---|---|
| Measurement Accuracy | Precise to 0.1 degrees/PSI via digital sensors. | Subjective visual reading of dial gauges. |
| Superheat Calculation | Automated real-time calculation prevents errors. | Manual chart referencing; prone to miscalculation. |
| Evacuation Verification | Digital micron gauge confirms absolute vacuum. | Time-based guessing; high risk of moisture left behind. |
| Data Documentation | Bluetooth data logging and exported PDF reports. | Handwritten notes that easily get lost or damaged. |
A true commissioning partner does not leave immediately after flipping the switch. Clarify that the technician will remain on-site during the entire initial temperature pull-down phase. This phase can take several hours. During this time, the technician must monitor the first defrost cycle manually. They also need to adjust the thermal expansion valves (TXV) under an active thermal load. A TXV adjusted while the room is empty will operate differently once you load the room with warm product. Active load testing ensures the system responds properly to real-world conditions.
Pre-startup checks serve as the foundational step in a commercial refrigeration lifecycle management strategy. Bypassing this phase guarantees future mechanical instability and voids essential warranties. You must isolate and verify the structural envelope, electrical supply, and mechanical piping independently. Advise your decision-makers to withhold final project sign-off and payment until the contractor delivers a fully documented commissioning report. Once you receive this report, review it carefully, verify the metric ranges, and safely archive it for future maintenance benchmarking. Taking these deliberate actions today protects your capital investment and ensures decades of reliable freezing performance.
A: The timeframe varies significantly based on system complexity. A simple, self-contained walk-in unit usually requires 4 to 6 hours for proper verification and initial pull-down observation. However, custom-built cold rooms with remote split systems and advanced digital controllers often demand a full day or more. Technicians need this extended time to perform deep vacuums, calibrate sensors, and monitor active load cycles accurately.
A: Yes. Tier-one HVAC/R manufacturers enforce strict warranty requirements regarding baseline data submission. They require documented proof of proper superheat, subcooling, and electrical amp draws at the time of startup. If you fail to submit this standardized checklist, manufacturers will legally classify future breakdowns as installation errors, completely voiding your parts and labor coverage.
A: Installation covers the physical assembly of the room. It includes erecting panels, running copper pipes, and wiring components together. Commissioning represents the systematic testing and tuning phase that follows installation. It verifies that the installed components actually perform according to engineering designs and operational intents. Installation builds the system; commissioning proves it works safely.
