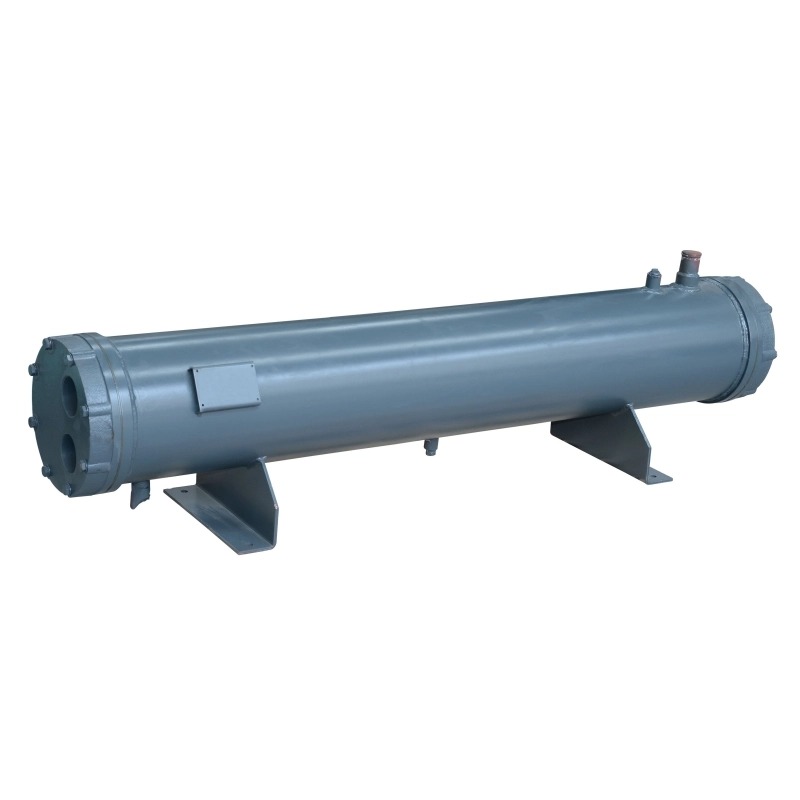

In marine and high-chloride environments, material selection is a make-or-break engineering decision. It directly dictates the long-term reliability and physical integrity of a Shell and Tube Water Cooled Condenser. Modern industrial operations—from desalination plants to megawatt-class power generation—operate with zero tolerance for pinhole leaks. A single cross-contamination event between raw seawater and pure condensate can trigger catastrophic system failures. You simply cannot afford unexpected plant downtime or severe galvanic corrosion. Navigating the choice between high-performance titanium, traditional copper-nickel alloys, and advanced duplex stainless steels requires looking past initial procurement factors. This guide breaks down the engineering realities, fluid dynamics, and hidden failure mechanisms. Read on to discover how you can specify the exact condenser tube material needed for reliable, long-term operation.
Flow Velocity Dictates Material: Copper-nickel is capped at around 3.0 m/s to prevent erosion, while titanium thrives in high-velocity environments (12–30 m/s).
Beware of Systemic Interactions: Upgrading to titanium tubes requires redesigning the tube sheet and cathodic protection system to prevent severe galvanic corrosion and hydrogen embrittlement.
Biological & Chemical Threats Differ: While copper alloys naturally resist bio-fouling, they are highly vulnerable to sulfide-polluted waters. Titanium is immune to chlorides but requires mechanical cleaning (like sponge ball systems) to prevent biological buildup.
Seawater serves as a highly efficient cooling medium. However, it presents an extremely aggressive chemical environment. Engineers must understand these threats to make informed material choices.
High concentrations of chloride ions combined with dissolved oxygen create a hostile environment. They aggressively target the passive oxide layers on standard metals. Once chlorides penetrate this protective film, they initiate localized pitting and crevice corrosion. This attack accelerates rapidly in warm water. Standard carbon steel and basic stainless steels degrade quickly under these conditions. You must evaluate the Pitting Resistance Equivalent Number (PREn) of any chosen alloy to ensure it withstands the specific chloride levels of your site.
Biological threats often cause more damage than chemical ones. Sulfate-reducing bacteria thrive in cooling systems. They trigger severe localized attacks, even in seemingly mild water. These bacteria attach to tube walls and produce highly corrosive hydrogen sulfide as a metabolic byproduct. Minimal manganese concentrations—sometimes as low as 20 parts per billion—can initiate MIC in standard stainless steels. This localized attack causes rapid pitting and unexpected tube perforation.
Fluid dynamics play a crucial role in condenser longevity. You must maintain a delicate balance regarding flow velocity. If the water moves too slowly, suspended solids settle inside the tubes. This promotes bio-fouling and under-deposit corrosion. If the water moves too fast, you risk velocity-accelerated erosion-corrosion. High speeds strip away the natural protective films on softer metals. Impingement attacks occur frequently at the tube inlets where turbulence peaks.
Selecting the right alloy requires matching metallurgical properties to your exact operating conditions. Here are the three primary material families used in modern industrial cooling.
Titanium offers near-perfect immunity to seawater, high chlorides, and velocity-induced erosion. Its oxide layer instantly self-heals if scratched. Grade 2 serves as the standard for general industrial use. Grade 7 includes a small palladium addition. This provides extreme resistance to crevice corrosion in low-pH environments. Grade 12 incorporates molybdenum and nickel for high-temperature and high-flow durability. While titanium performs exceptionally well, it requires careful management of galvanic coupling when paired with other metals.
Copper-nickel alloys possess excellent natural resistance to bio-fouling. They repel marine macro-growth without heavy chemical treatments. This makes them highly effective for standard cooling profiles. However, they carry strict design velocity limits. Engineers typically cap flow rates at 3.0 m/s maximum to prevent erosion. Furthermore, these alloys remain highly susceptible to rapid film degradation if exposed to hydrogen sulfide in polluted, stagnant water.
Duplex stainless steels combine high mechanical strength with excellent PREn values. Alloy 2205 handles moderate industrial environments effectively. Super Duplex 2507 tackles high-pressure and high-chloride environments with ease. They resist general corrosion well. However, they remain susceptible to specific Stress Corrosion Cracking (SCC) thresholds. You must select the precise alloy based on your maximum operational temperatures and chloride concentrations.
The table below summarizes the operational characteristics of these core condenser tube materials.
Material Family | Max Flow Velocity | Bio-fouling Resistance | Chloride Resistance | Primary Limitation |
|---|---|---|---|---|
Titanium (Gr 2, 7, 12) | 12.0 - 30.0 m/s | Low (Requires cleaning) | Exceptional | Strong galvanic potential |
Copper-Nickel (90/10) | Maximum 3.0 m/s | High (Natural) | Moderate | Erosion & sulfide attacks |
Duplex Stainless (2205) | Unrestricted | Low | High | Stress corrosion cracking |
Super Duplex (2507) | Unrestricted | Low | Very High | Temperature limit thresholds |
You need a structured approach to narrow down your material choices. Follow this four-step engineering framework to ensure optimal system performance.
Define the Chemical Environment: Audit the cooling water thoroughly. Measure the chloride parts per million (ppm) and monitor pH levels. Track suspended solids and potential pollutants like ammonia or sulfides. This baseline data dictates your baseline material requirements.
Establish Flow Velocity Boundaries: Match the pump and system design flow to the material’s tolerance. Keep velocity low if you specify copper-nickel. Conversely, you can push flow velocities much higher for titanium. Higher velocity improves the overall heat transfer coefficient.
Evaluate Thermal & Pressure Constraints: Account for heat transfer capabilities. Copper is highly conductive. However, titanium’s immense strength allows for ultra-thin wall designs. Engineers often specify titanium tubes between 0.5mm and 0.7mm thick. This effectively closes the thermal conductivity gap between the two metals.
Align with Maintenance Protocols: Decide on your cleaning strategy. Chemical chlorination can attack and degrade certain metal alloys over time. Mechanical continuous cleaning offers a safer alternative. Systems utilizing automated sponge balls combined with reverse-flow flushing keep titanium tubes perfectly clean without harsh chemicals.
Selecting a high-grade material does not guarantee immunity from failure. System-level interactions often introduce hidden risks. You must engineer the entire condenser to support the tube material.
Pairing titanium tubes with a standard carbon steel or copper-alloy tube sheet creates a powerful galvanic cell. Titanium acts as a strong cathode. It forces the less noble tube sheet material to act as an anode, corroding it rapidly. You must design the system to mitigate this. Stress the need for compatible tube sheets, such as solid titanium or explosively clad titanium plates. Alternatively, you must install and monitor proper sacrificial iron anodes in the waterboxes.
Cathodic protection prevents galvanic corrosion, but it requires precise control. Over-applied cathodic protection creates an advanced engineering pitfall. If you push the negative potential past -750mV, a dangerous reaction occurs. Atomic hydrogen penetrates the titanium structure. It forms titanium hydride, creating brittle phases within the metal. This causes irreversible structural failure. Engineers must regulate cathodic protection systems carefully to avoid destroying the very tubes they aim to protect.
Titanium condenser tubes require special structural considerations. Manufacturers often produce them with very thin walls to improve heat transfer. This makes them highly susceptible to fluid-induced mechanical resonance. When the cross-flow velocity of the shell-side fluid hits a critical frequency, the tubes vibrate violently. This high-cycle fatigue leads to cracking at the tube supports. Proper baffle spacing in the shell design is absolutely critical. You must perform thorough vibration analysis during the design phase.
The method used to join the tubes to the tubesheet heavily influences system reliability. Even the best tube material fails if the joint leaks.
Standard industrial condensers often rely on mechanical expansion, known as rolled joints. However, in critical seawater applications, this method falls short. Rolled joints lack sufficient holding power and gas-tightness for thin-walled titanium. You must specify precision tube-to-tubesheet seal welding. This process demands rigorous quality control. Welders require strict, clean-room-like argon shielding to prevent atmospheric contamination. A perfect titanium weld appears silver-white. Any blue or yellow discoloration indicates severe oxidation and an unacceptable joint.
Thermal expansion generates immense mechanical stress during operation. Straight tubes locked tightly between two fixed tubesheets absorb this stress poorly. We suggest utilizing TEMA BEU bundle configurations where applicable. The U-tube design naturally absorbs thermal expansion. The tubes bend freely as temperatures fluctuate. This reduces mechanical stress on the tube sheet. It also cuts the total number of tube-to-tubesheet joints in half, minimizing potential leakage points in mixed-media condensers.
Specifying the right tube material requires looking beyond basic metal properties. It demands a holistic understanding of fluid dynamics, water chemistry, and structural joint integrity. Copper-Nickel remains a viable option for clean, low-velocity seawater environments. Duplex stainless steels serve as a strong transitional bridge for high-pressure, moderate-chloride applications. However, Titanium stands as the definitive choice for mission-critical infrastructure prioritizing absolute zero-leakage and multi-decade longevity.
Before moving forward, audit your cooling water chemistry thoroughly. Analyze your flow velocities and review your existing cathodic protection systems. Gather this precise operational data before requesting custom fabrication quotes to ensure a highly reliable, leak-free condenser design.
A: Yes, you can. The shell side typically handles the clean vapor or refrigerant where carbon steel performs acceptably. However, the waterboxes and tube sheets exposed directly to the seawater must be clad in titanium. You must also adequately protect them with sacrificial anodes to prevent severe galvanic corrosion.
A: Titanium features an instantly self-healing oxide layer. Unlike copper alloys that suffer from impingement attack and erosion-corrosion at speeds above 3 m/s, titanium withstands flow velocities of 12 to 30 m/s without degrading. This allows for smaller, more efficient condenser designs.
A: Titanium does not naturally repel marine organisms like copper does. Therefore, facilities utilize continuous physical cleaning methods. They install automated sponge ball systems and use periodic thermal shock by reversing the flow. This completely eliminates the need for harsh, damaging chemical dosing.
