HVAC and industrial cooling systems routinely account for a massive percentage of total facility energy consumption. Deciding between a water-cooled and an air-cooled architecture is the single biggest factor influencing long-term operational expenditure (OpEx). Facility managers often fall into a dangerous trap. They look only at "nameplate" efficiency or the initial capital expenditure (CapEx). They ignore how local climate conditions, harsh maintenance realities, and gradual system degradation dictate the actual monthly energy bill.
Our purpose here is simple. We will provide a transparent, comprehensive operational expenditure breakdown. This guide will help engineers and procurement teams evaluate these competing technologies. You will learn which condenser framework truly delivers lower energy costs tailored to your specific site conditions. We will explore the hidden penalties of neglected maintenance and the thermodynamic realities of summer heat waves.

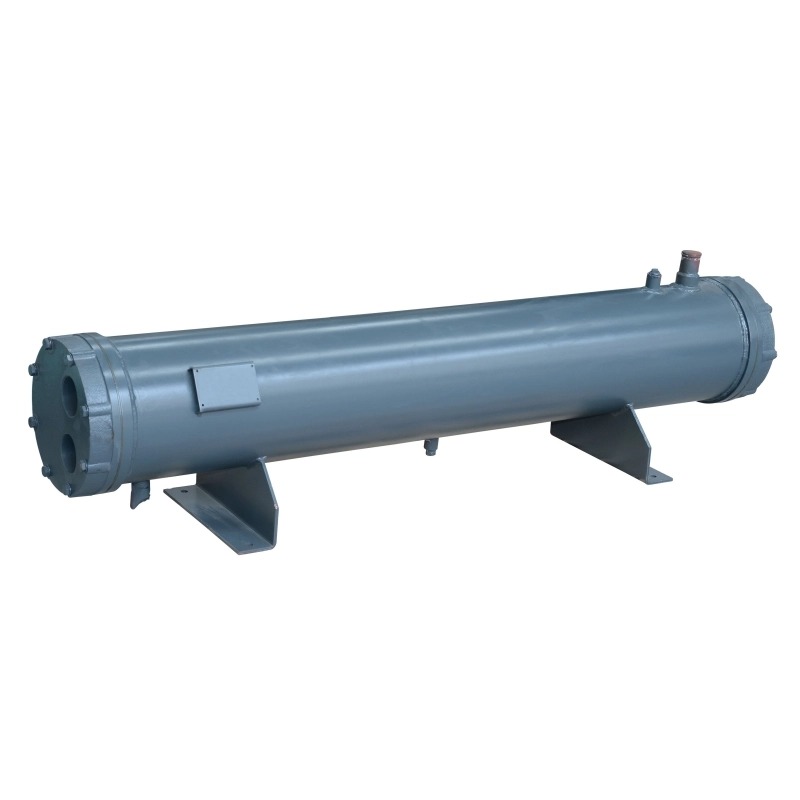

A shell and tube water cooled condenser offers superior baseline heat transfer and energy efficiency but is highly vulnerable to fouling; just 0.6mm of scale can cause a 20% drop in efficiency.
Air-cooled systems eliminate water treatment and compliance costs but face severe efficiency penalties during peak summer ambient temperatures.
Total energy savings depend more on your facility's maintenance bandwidth (e.g., managing water quality vs. fan cleaning) and local climate (wet-bulb vs. dry-bulb temperatures) than on the equipment's theoretical specifications.
Beware of aftermarket "efficiency hacks" like misting sprays for air-cooled units, which often lead to irreversible corrosion and electrical failure.
Evaluating any cooling system requires a basic understanding of thermodynamics. Water possesses a significantly higher heat capacity than ambient air. It also boasts superior thermal conductivity. This means water absorbs and transports thermal energy far more effectively. Air requires an immense physical volume to match the heat-absorbing capabilities of a small volume of water. These fundamental physical properties dictate how engineers design industrial heat exchangers. You cannot escape the physics of your chosen cooling medium.
Large-scale industrial and commercial applications default heavily to closed-loop water systems. This preference comes down to physical footprint and thermodynamic limits. Water systems require less physical space per ton of cooling. A Shell and Tube Water Cooled Condenser allows chillers to operate at significantly lower condensing temperatures. Lower temperatures mean the compressor does not have to work as hard. This directly translates to lower electrical draw during steady-state operations. For massive facilities, the density of water-cooling makes it the only practical choice.
Air-cooled architectures offer a stark operational tradeoff. They rely on high-velocity fans to force ambient air across finned coils. This process fundamentally requires more mechanical energy. Fan motors must spin constantly to move enormous volumes of air. Achieving the same cooling output as a water-based system demands a higher baseline electrical load. You trade electrical efficiency for mechanical simplicity. There are no cooling towers, no makeup water lines, and no intricate pump networks. You simply install the unit and supply power.
Water-cooled technology thrives under heavy, continuous loads. It remains optimal for high-pressure, high-temperature, and large-scale industrial applications. The core advantage lies in the compressor workload. By utilizing a Shell and Tube Water Cooled Condenser, chillers operate at much lower condensing pressures. The compressor draws less amperage to achieve the same refrigeration cycle. Over a multi-decade lifespan, this lower amperage promises massive electricity savings. Facilities running 24/7 manufacturing processes depend entirely on this high-efficiency promise.
You must protect this efficiency fiercely. Manufacturers understand the reality of poor water quality. OEMs routinely oversize heat exchangers by 20% to 300%. They apply this "safety factor" to mask inevitable scale buildup. They know end-users often neglect water chemistry. This over-engineering hides the immediate impact of fouling from the facility manager.
Real-world data reveals a harsh truth. Even minor micro-fouling acts as a powerful thermal insulator. A microscopic layer of mineral scale severely restricts heat transfer. It forces the compressor to work harder to overcome the thermal resistance.
Scale Thickness: Just 0.6mm of scale buildup on internal tubes.
Efficiency Drop: Results in up to a 20% decrease in overall efficiency.
Financial Impact: Causes thousands of dollars in wasted electricity annually.
To maintain your nameplate energy bills, you must invest heavily in maintenance. Facilities require rigorous chemical water treatment and precise blowdown routines. Many plants install Automatic Tube Cleaning Systems (ATCS). These systems circulate sponge balls through the tubes to prevent biological growth and mineral deposits. You must pay for this maintenance continually. If you ignore it, your supposed energy savings evaporate instantly.
Air-cooled chillers liberate a facility from municipal water dependencies. You face zero reliance on local water supplies. This eliminates costly sewage bills entirely. You no longer need to purchase expensive chemical inhibitors or biocide treatments. Furthermore, you completely bypass the risk of Legionella outbreaks. Compliance audits, water testing protocols, and tower cleaning routines vanish from your operational budget. For facilities in drought-prone regions, this water independence is invaluable.
This operational freedom comes at a steep price during summer. Air-cooled efficiency remains permanently tethered to ambient "dry-bulb" temperatures. When a summer heat wave hits, the system struggles to reject heat. Ambient air temperatures rise, causing condensing pressures to spike dramatically.
This triggers a cascading increase in energy consumption. The compressor works harder against the high pressure. The condenser fans ramp up to maximum RPM to force more hot air across the coils. This massive energy draw happens precisely when utility companies charge peak demand rates. Your summer electricity bill will reflect this thermodynamic penalty aggressively.
Facility managers often panic during these summer demand spikes. They look for cheap solutions to cool their struggling units. A common misconception suggests adding aftermarket water misters to air-cooled coils saves energy. Vendors market these spray systems as an easy efficiency hack. You must avoid this practice completely.
The risks of spray cooling heavily outweigh any temporary pressure drop. Repeated wet and dry cycles bake hard water minerals directly onto delicate aluminum fins. This causes permanent mineral scaling. Worse, the dissimilar metals in the coils experience severe galvanic corrosion. Water mist frequently drifts into electrical cabinets. This creates a massive risk of electrical failure. Ultimately, you will destroy the equipment's lifespan and permanently ruin its efficiency.
Climate dictates equipment performance more than any brochure specification. You must understand the difference between wet-bulb and dry-bulb temperatures. Water-cooled towers rely on evaporation. They are governed by the wet-bulb temperature. In highly humid climates, evaporation slows down. However, a water-cooled system still heavily outperforms an air-cooled unit fighting extreme dry-bulb heat. In arid, desert-like environments, the performance gap narrows significantly. Dry air allows limited evaporation, but extreme heat punishes air-cooled coils. You must analyze local meteorological data carefully.
Engineers have developed an advanced workaround for the air-cooled summer penalty. They utilize Thermal Energy Storage (TES). This involves running air-cooled chillers at night. Ambient temperatures plummet after sunset. The chillers operate highly efficiently in the cool night air.
They generate chilled water or ice, storing this thermal energy in massive insulated tanks. During the blistering daytime heat, the chillers shut off entirely. The facility deploys the stored thermal energy to cool the building. This strategy completely offsets the daylight energy penalty of air-cooled systems. It allows facilities to exploit cheap, off-peak electricity rates.
Physical placement heavily impacts your actual energy bill. Air-cooled units demand strict physical clearances. They need massive volumes of unobstructed airflow. Poor placement leads to a phenomenon called "perpetual recirculation." The unit exhausts hot air, but walls or overhangs trap it. The unit then draws its own exhausted hot air back into its intakes. This instantly inflates the energy bill and causes high-pressure shutdowns.
Conversely, water-cooled systems require complex internal footprints. You need dedicated mechanical rooms. You must install cooling towers on the roof. You need extensive pump networks to move the water. Every peripheral pump adds an additional energy load to your facility. You must account for these secondary motors in your energy calculations.
Choosing the correct system requires a holistic view of your facility's unique parameters. You must balance initial costs against long-term maintenance realities. The following criteria will guide your procurement strategy.
Your cooling load profile dictates the starting point. Large, continuous heavy-industrial loads heavily favor shell and tube designs. The steady baseload allows the water-cooled efficiency to compound over time. Conversely, variable loads or smaller commercial applications often favor air-cooled units. Their ability to stage up and down quickly without complex water management makes them agile.
You cannot make a decision without analyzing your local utility tariffs. Compare your local water and sewer rates against peak-demand electricity charges. Run a localized operational cost model. If your municipality charges exorbitant sewage fees, water-cooling becomes financially toxic. If your electrical grid enforces brutal summer peak-demand penalties, air-cooling may bankrupt your operational budget.
This remains the most critical, yet frequently ignored, factor. Ask yourself honestly: does your facility have the personnel or budget for daily water quality monitoring?
If yes, a water-cooled system will reward you with superior efficiency.
If no, an air-cooled system offers a predictable energy bill.
A neglected water-cooled system guarantees catastrophic mechanical failure.
An air-cooled system's slightly higher baseline energy cost acts as an insurance policy. It protects you against the disastrous consequences of ignored water chemistry.
Modern sustainability certifications demand high performance. Upgraded components help both systems meet LEED or BREEAM certifications. You can specify microchannel coils for air-cooled units to reduce refrigerant charge and improve heat transfer. You can select low-friction tube metallurgy for water-cooled shells to minimize pump energy. Integrating heat recovery captures waste heat for domestic hot water. Both architectures can achieve rigorous green building standards if engineered correctly.
Evaluation Criteria | Shell and Tube (Water-Cooled) | Air-Cooled |
|---|---|---|
Baseline Efficiency | Extremely High (dependent on water quality) | Moderate (drops heavily in summer) |
Maintenance Intensity | High (Chemicals, ATCS, brushing) | Low (Coil washing, bearing checks) |
Water Consumption | High (Evaporation & blowdown) | Zero |
Space Requirements | Indoor mechanical room + rooftop tower | Large unobstructed outdoor footprint |
The core verdict is surprisingly simple. A shell and tube condenser does not automatically guarantee a lower energy bill. It merely guarantees a higher potential efficiency. You must fiercely protect this potential through flawless, continuous maintenance. If you allow scale to build, you will pay water-cooled maintenance costs while suffering air-cooled energy bills.
Base your procurement decision strictly on your site’s specific climate data. Utilize meteorological models like Cooling Degree Days to normalize weather variables accurately. Cross-reference this data with your realistic internal maintenance capabilities. Never assume a specialized maintenance routine will materialize post-installation.
Before drafting your RFQ, engage a thermal engineer or a metallurgist. Have them evaluate your local fluid properties, space constraints, and site conditions. A rigorous front-end engineering assessment prevents decades of inflated utility bills.
A: At design conditions, yes. Water transfers heat far better than air. However, real-world efficiency drops rapidly if the water tubes experience mineral scaling or biological fouling. Without strict maintenance, a fouled water-cooled unit will consume more energy than a clean air-cooled system.
A: Microscopic layers of scale can cause massive disruptions. A scale layer as thin as 0.6mm can increase compressor energy consumption by up to 20%. This happens because the mineral layer acts as an insulator, resulting in a severe loss of thermal conductivity.
A: It is highly discouraged. Unless you use heavily treated reverse-osmosis water, aftermarket sprays cause severe damage. The constant wet-and-dry cycles cause permanent scale buildup, rapid fin corrosion, and premature equipment failure. It also risks electrical shorts if moisture enters the control panels.
A: Air-cooled units generally require simple, periodic fin cleaning and basic fan bearing checks. Water-cooled shell and tube systems demand a much higher maintenance bandwidth. They require continuous water chemistry management, cooling tower maintenance, biocide dosing, and periodic mechanical tube brushing.
