In commercial settings like convenience stores, restaurant kitchens, and boutique pharmaceutical storage, headroom is at a premium. Traditional cubic evaporators demand large clearances for installation and airflow. They inevitably create vast vertical dead zones. Facility managers face a difficult choice when outfitting these confined areas. They often assume switching to a compact or ceiling-mounted profile means compromising on heat exchange efficiency. Many worry about risking uneven temperature distribution across their critical inventory.
However, advances in refrigeration hardware have changed this dynamic entirely. We will objectively examine how modern slim evaporators maintain heavy-duty cooling capacity in tight spaces. You will understand the specific engineering trade-offs involved in these compact designs. Furthermore, we will explore the precise criteria needed to match a slim unit to your condensing system. You will learn how to properly size these components without risking catastrophic compressor failure.
Spatial ROI: Slim evaporators (often angled or flat ceiling-mounted) reclaim high-value vertical storage space without compromising the sub-zero or chilling requirements (spanning +15°C down to -25°C).
System Matching is Critical: Oversizing the condensing unit relative to a slim evaporator risks incomplete refrigerant vaporization, leading to compressor "liquid hammer."
Fin Spacing Dictates Application: 4mm–6mm spacing suits standard chillers (2~8°C), while 9mm+ is mandatory for deep-freeze environments to prevent rapid ice bridging.
Future-Proofing: Evaluating a unit’s compatibility with Low-GWP refrigerants (e.g., R448A/R449A) is now a mandatory compliance step for new procurement.
Maximizing storage capacity remains the ultimate goal for any commercial cold room. Traditional cubic evaporators directly interfere with this objective in low-ceiling environments. These bulky units require significant clearance on all sides to function correctly. They need ample space behind the fans to draw in warm air. They also demand vertical clearance below the drain pan to prevent restricted airflow. Consequently, a standard cubic unit can render the top 15 to 20 percent of a small walk-in cooler entirely unusable.
This persistent "dead zone" problem forces facility operators to store less product. Alternatively, they must build larger footprints to achieve the desired storage volume. You can solve this structural inefficiency by deploying alternative profiles. Flat, single-layer, or angled ceiling-mounted designs push the hardware flush against the upper boundaries. They seamlessly tuck into corners or sit tight against the ceiling panels.
Reclaiming this commercial space directly translates to higher inventory density. You can stack shelves higher and organize pallets more efficiently. However, you must carefully evaluate the fan capabilities of these flush-mounted units. You cannot simply install a compact unit and ignore airflow dynamics. The built-in fan motors must generate enough thrust to reach the opposite walls. If the airflow throw falls short, you will create dangerous warm pockets. Proper evaluation ensures you gain vertical space while maintaining strict temperature uniformity.

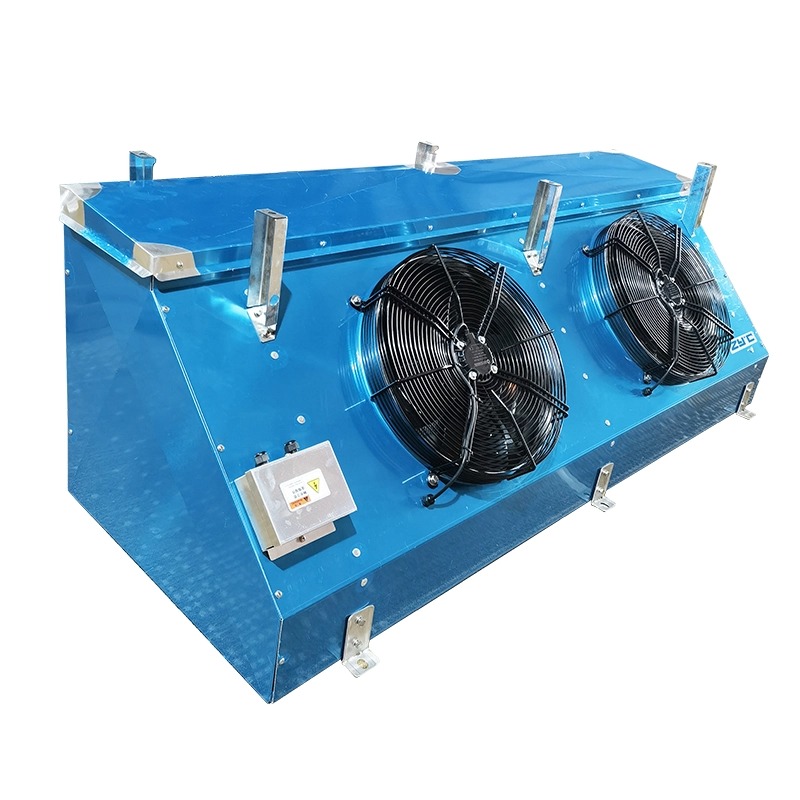

You might wonder how a physically smaller casing can deliver the same cooling capacity as a bulky cubic model. Engineers overcome this volume reduction by heavily optimizing the internal heat exchange surfaces. A Slim Type Evaporator for Cold Room relies on high-density coil configurations. Manufacturers tightly pack premium copper tubes inside the chassis. They pair these tubes with specialized aluminum fins designed for maximum thermal transfer.
You will frequently encounter specialized coatings on these fins. Hydrophilic blue fins accelerate condensation runoff. They prevent tiny water droplets from bridging the gaps between fins. Anti-corrosive gold fins provide robust protection in harsh environments. They resist damage from airborne food acids or mild chemical exposure.
Another crucial engineering decision involves the draft configuration. Many slim units utilize a single-layer chassis design. This approach offers distinct operational advantages over multi-layer alternatives:
Improved Air Penetration: Fans push air through a single, highly optimized layer much easier. This reduces the static pressure drop across the coil.
Faster Defrost Cycles: Heat distributes more evenly across a single layer. Frost melts away faster.
Easier Maintenance: Technicians can access the entire coil surface without dismantling complex multi-tiered assemblies.
Slim profiles also face unique challenges regarding frost management and drainage. Because they sit flush against the ceiling, gravitational drainage requires precise engineering. You must account for the following integrated limits:
Reliable Defrost Heaters: Slim units operate with smaller internal air volumes. Frost can accumulate rapidly. You need highly dependable Thermo-Electric Coolers to melt ice quickly before it blocks the high-density fins.
Insulated Drain Pans: Cold condensation pools inside the drain pan during a defrost cycle. In a low-clearance environment, a poorly insulated pan will sweat on the outside. This causes water to drip directly onto your stored goods. Double-layer or foam-insulated pans are strictly necessary.
Sloped Drain Lines: The internal pan must feature a precise aggressive slope. Water must evacuate instantly before the freezing cycle resumes.
Procuring a compact evaporator solves your space constraints, but it introduces strict sizing requirements. A critical evaluation point lies in matching the indoor unit to the outdoor condensing unit. Facility managers sometimes connect a highly efficient slim cooler to an oversized legacy compressor. This mismatch creates a severe mechanical hazard.
If the outdoor condensing unit's capacity greatly exceeds the indoor evaporator's capacity, a dangerous imbalance occurs. The slim coil simply lacks the surface area to boil off all the incoming liquid refrigerant. Consequently, liquid refrigerant travels backward through the suction line. It eventually reaches the compressor. Compressors are built to compress vapor, not liquid. When liquid enters the compression chamber, it causes a violent mechanical failure known as "liquid hammer." This event destroys valves, shatters pistons, and ruins the compressor entirely.
You must prevent this by carefully sizing your thermal expansion valve (TXV). The expansion valve regulates the exact flow of refrigerant entering the coil. It must match the precise cooling capacity of the evaporator.
Undersized Valve: Restricts refrigerant flow too much. The coil starves, causing the compressor to overheat and the room temperature to rise.
Oversized Valve: Floods the coil with too much liquid. The refrigerant cannot fully vaporize, causing liquid flood-back and eventual liquid hammer.
You can verify a properly matched system by measuring the superheat. Superheat represents the temperature increase of the refrigerant vapor after it fully boils inside the coil. Maintaining a safe superheat margin is your ultimate diagnostic metric. A properly matched system typically targets a superheat of 4K to 7K. This specific range guarantees complete vaporization while keeping the returning gas cool enough to prevent compressor motor overheating.
You must specify several hardware variables to align the unit with your specific commercial application. Buying off the shelf without checking fin spacing or casing materials will lead to premature failure. Use the technical criteria below to evaluate your options.
The distance between the aluminum fins determines how well the unit handles frost. If you select a tight fin spacing for a freezing environment, ice will bridge the gaps in hours. This chokes the airflow entirely.
Target Room Temperature | Recommended Fin Spacing | Typical Stored Goods |
|---|---|---|
+2°C to +8°C | 4mm to 6mm | Fresh produce, beverages, pharmaceuticals. |
-18°C to -25°C | 6.5mm to 10mm | Frozen meat, ice cream, deep-freeze logistics. |
The exterior housing must survive the ambient conditions of your specific industry. Standard metal will rust rapidly in acidic food prep areas.
Material Type | Key Characteristics | Best Use Case |
|---|---|---|
Magnesium-Aluminum Alloy | Extremely lightweight, excellent natural corrosion resistance. | Standard commercial use, convenience stores, weight-restricted ceilings. |
Galvanized Steel (Powder Coated) | High structural strength, resistant to physical impacts. | Busy logistics environments, warehouses with forklift traffic. |
304 Stainless Steel | Maximum rust prevention, easy to sanitize, non-reactive. | Food processing plants, strict pharmaceutical compliance zones. |
You must balance the fan speed carefully. The air throw must hit the opposite wall to eliminate dead zones. However, pushing air too aggressively across a very cold coil creates a massive Temperature Difference (TD). A high TD strips moisture out of the air. This rapidly dehydrates uncovered fresh produce. For vegetable storage, you need a unit capable of high air volume but a low TD to maintain safe humidity levels.
The refrigeration industry is undergoing a massive regulatory shift. Evaluating evaporators for compatibility beyond legacy refrigerants like R404A is critical. You must ensure your new equipment complies with evolving environmental standards.
Modern low-GWP (Global Warming Potential) alternatives, specifically HFO blends like R448A and R449A, dominate the current transition. These modern refrigerants offer significant energy efficiency gains, often improving system performance by up to 10 to 12 percent. However, they introduce a distinct thermodynamic behavior called "temperature glide."
Unlike old single-component refrigerants, HFO blends evaporate across a range of temperatures. They experience a temperature glide of 5 to 7°C inside the coil. This glide requires precise heat exchanger adjustments. The expansion valve and the electronic controller must account for this shifting temperature to maintain an accurate superheat.
Additionally, you must navigate the ASHRAE 34 safety classifications. Deploying new refrigerants in small, confined cold rooms demands strict safety oversight.
A1 (Non-flammable): These include legacy gases and some modern blends. They pose no ignition risk and require standard ventilation.
A2L (Mildly flammable): Gases like R32 fall here. You must integrate specific leak detection sensors when using them in confined commercial spaces.
A3 (Highly flammable): Refrigerants like R290 (Propane) offer incredible efficiency. However, their high flammability demands strict compliance. You must install explosion-proof electrical components and aggressive mechanical ventilation to prevent gas pooling.
Selecting the right hardware supplier requires looking past the initial purchase price. You must focus intensely on long-term operational efficiency and system compatibility. Request concrete data sets before finalizing any procurement decision.
First, demand specific performance data on fan motor power consumption. High-efficiency EC (Electronically Commutated) fan motors draw significantly less electricity than traditional AC motors. Over a five-year cycle, efficient motors save substantial capital. Furthermore, ask the supplier about their defrost cycle efficiency. A poorly designed electric heater wastes massive amounts of electricity during every melting phase.
Next, request matching load calculations. Never buy an evaporator in isolation. Require the supplier to validate the specific match with your existing or planned condensing unit. They should provide a capacity chart proving the evaporator can safely absorb the compressor's output at your target room temperature.
Finally, thoroughly inquire about maintenance accessibility. Because these slim units sit flush against the ceiling, routine servicing can become difficult. Ask how easily technicians can drop the drain pan. Verify whether the fan motors feature quick-disconnect harnesses. Fast access minimizes system downtime and lowers ongoing maintenance labor.
Calculate the Trade-offs: Choosing a slim unit is a strategic decision favoring maximum space utilization. You must rigorously verify thermal loads, fin spacing, and airflow dynamics to guarantee success.
Match Components Precisely: Never guess your expansion valve sizing. Ensure your indoor coil perfectly matches your outdoor compressor to prevent catastrophic liquid hammer.
Prioritize Defrost Engineering: Specify insulated drain pans and aggressive defrost heaters. Low-clearance environments leave zero margin for dripping condensation.
Prepare for New Refrigerants: Demand hardware rated for Low-GWP refrigerants. Account for temperature glide when setting up your digital controllers.
Demand Transparent Supplier Data: Prioritize vendors who openly share superheat management guidelines, fan power ratings, and exact air throw metrics.
A: It creates dangerous temperature dead zones. Cold air falls prematurely, leaving the far corners of the room warm. This leads to rapid product spoilage in those corners. Furthermore, the thermostat near the return air may register false high temperatures, causing the system to overwork and reducing your compressor's overall lifespan.
A: By precisely measuring the system's superheat. A properly matched system generally maintains a target superheat between 4K and 7K. If you observe continual heavy ice buildup on the coil or notice the compressor motor constantly overheating, you likely have a severe valve mismatch requiring immediate adjustment.
A: Yes. Because they mount completely flush against the ceiling, gravity drainage is inherently restricted. The internal drain pan and external pipe must feature a precise downward slope. In sub-zero rooms, you must install a heat tracing cable inside the entire drain line to prevent ice blockages.
A: They can, provided the entire system is explicitly engineered for it. You need a unit selected for high "rapid recovery" capacity. Additionally, you must implement an aggressive, carefully timed defrost schedule. Use off-cycle air defrost for rooms above 0°C, and robust electric defrost for sub-zero rooms to manage the heavy influx of ambient humidity.
